ES101CO - 2000 Outdoor CO Carbon Monoxide Sensor

ES101CO is an Outdoor CO Carbon Monoxide Sensor for air quality monitoring.

Outdoor Protective Design

• Prevent direct ultraviolet radiation to the sensors
• Avoid rapid aging of sensors under harsh environmental conditions such as strong winds, rain, and snow
• The sensor parts are ventilated for truly sensing the changes in external detection parameters
• Single or multiple parameters both can use small shutter, small size, lightweight and easy to install

Optional IoT Router and Cloud Platform - ThingsMaster

• Support Modbus to connect optional NBIoT Gateway WR222 for one or many sensors
• Real-time online monitoring, analysis, reporting
• Remote cloud security and visual management

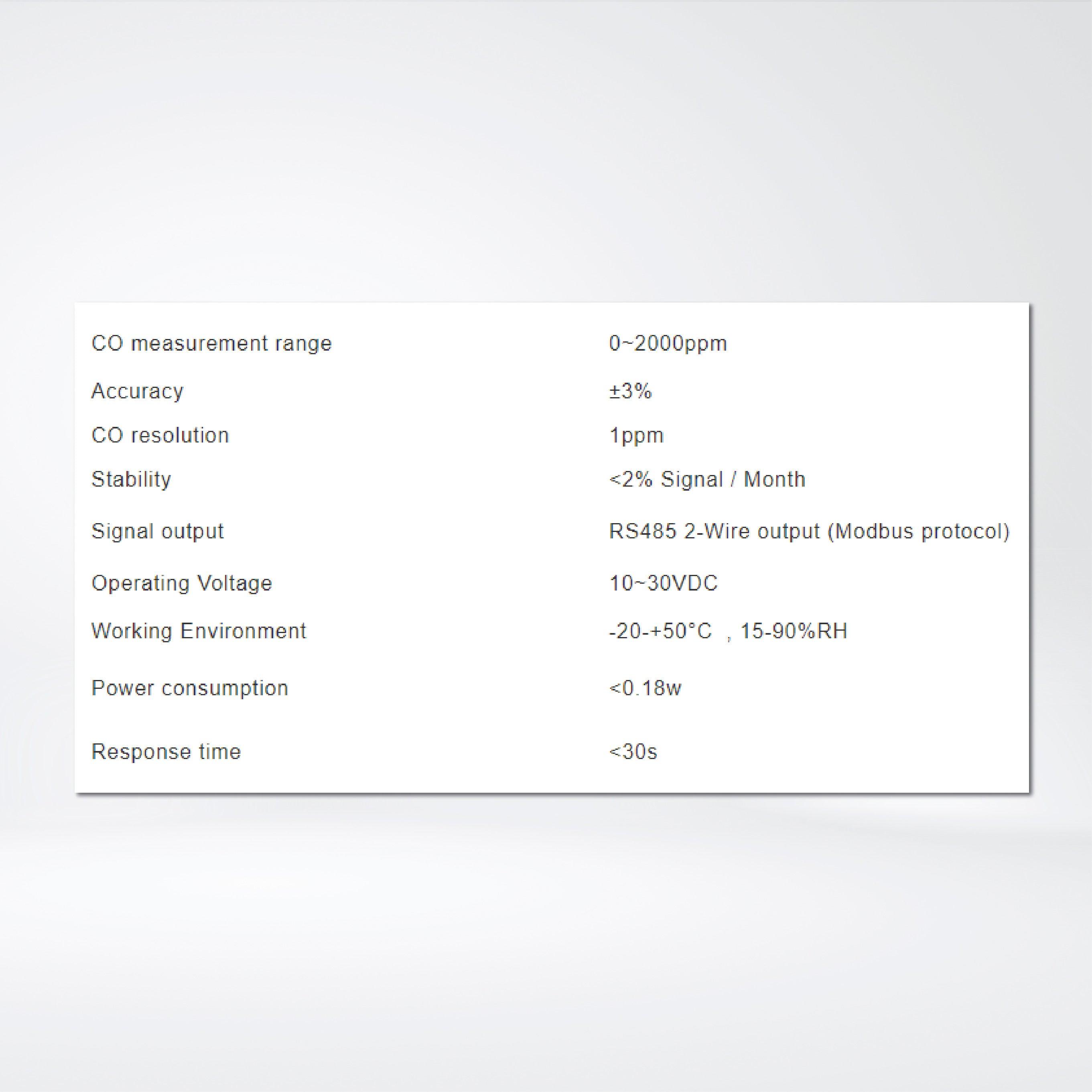

Features

• CO measurement range 0~2000ppm
• Accuracy ±3%
• CO resolution 1ppm
• Stability <2% Signal / Month
• Signal output RS485 2-Wire output (Modbus protocol)
• Operating Voltage 10~30VDC
• Working Environment -20-+50°C , 15-90%RH
• Power consumption <0.18w
• Response time <30s
