DataMan 8072V Series Barcode Verifiers

High-performance code quality verification

Barcode verification is the process of grading the quality of barcodes. Barcode verifiers capture images and generate reports to demonstrate compliance to parameters within industry standardization guidelines.

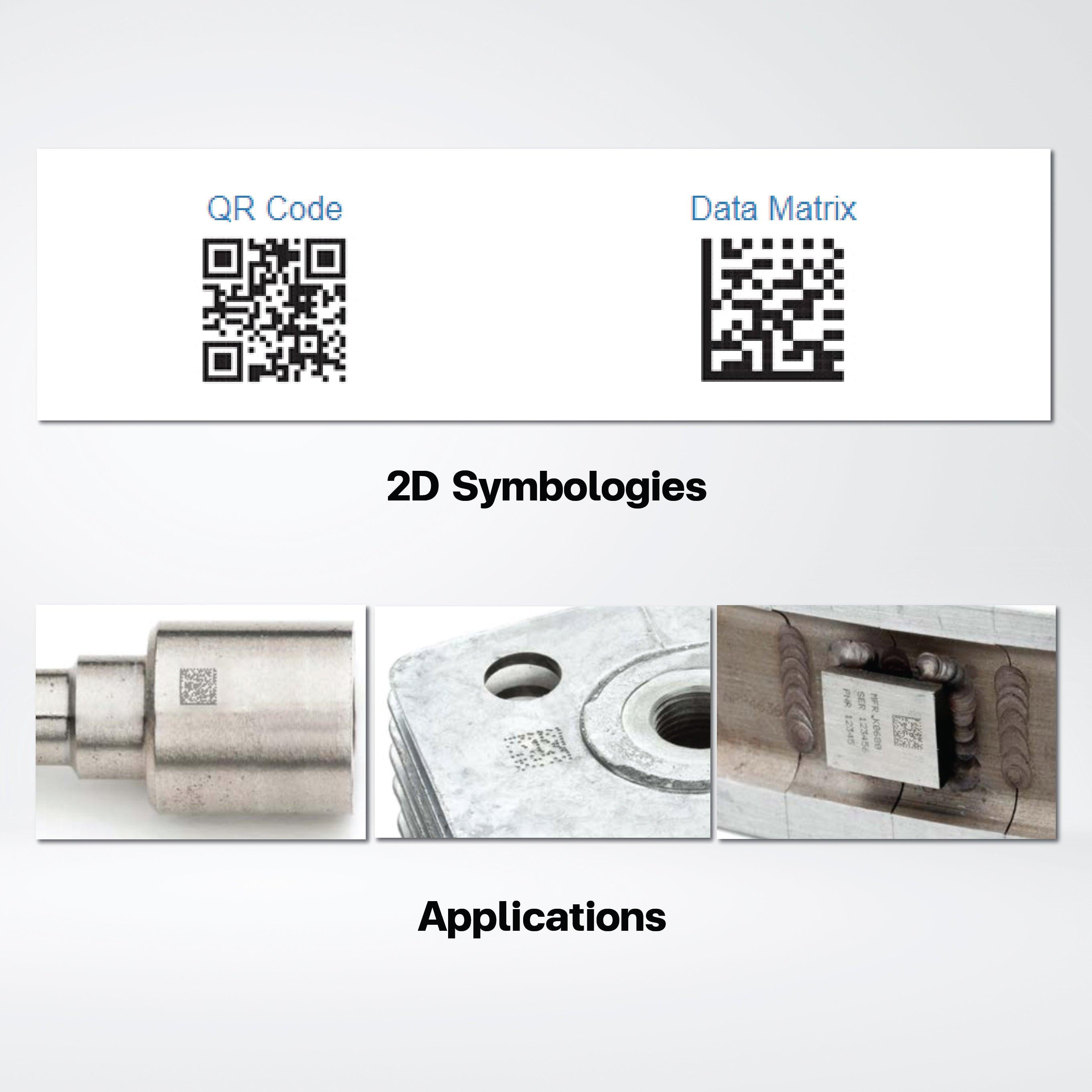

The DataMan 8072 series barcode verifier is packed with powerful lighting options, robust grading algorithms, a high-speed processing engine, and a high-resolution camera to capture and grade the most difficult direct part mark (DPM) codes. Combined with simple DataMan Setup Tool software, DataMan 8072 series verifiers deliver detailed, repeatable results.

Features

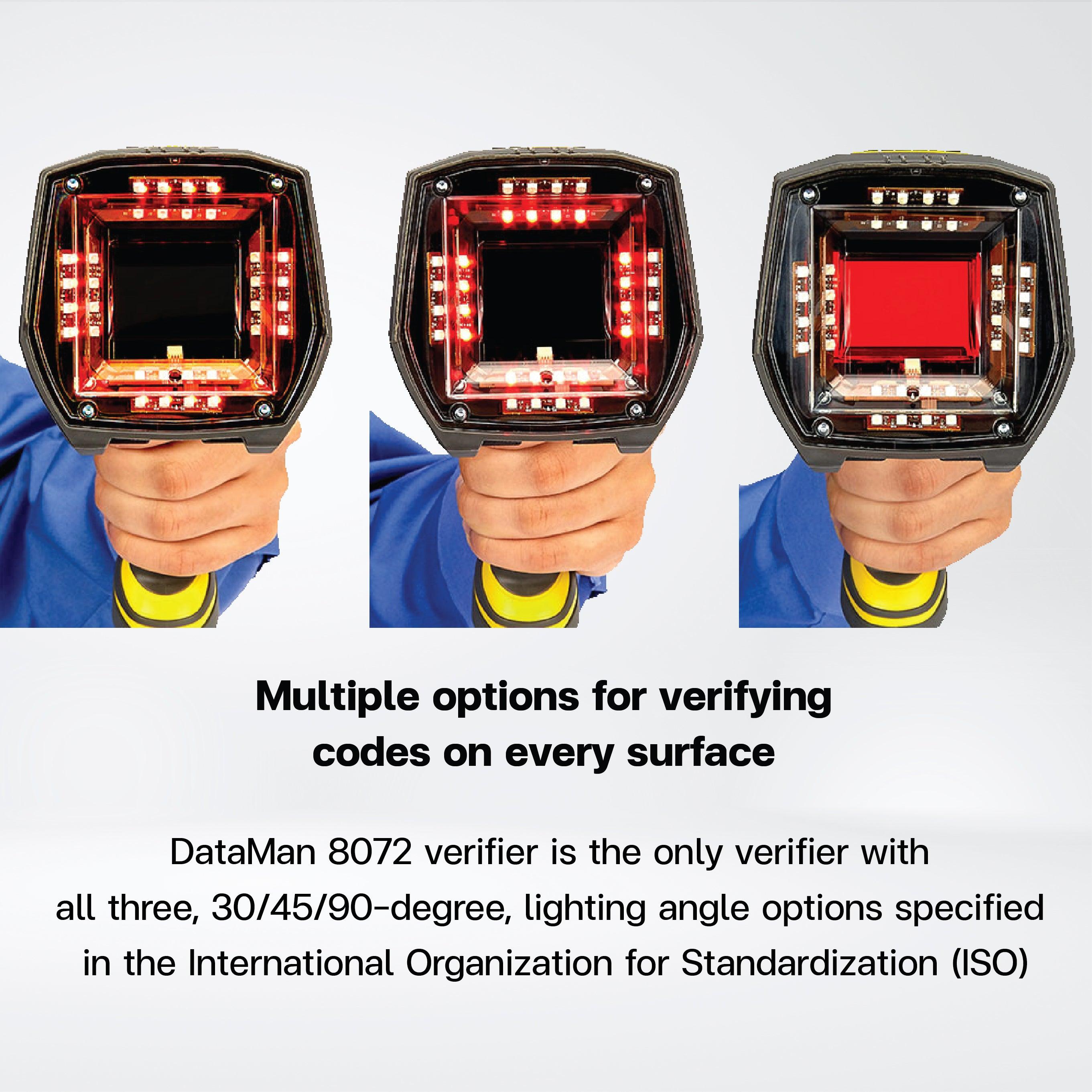

 Multiple options for verifying codes on every surface

DataMan 8072 verifier is the only verifier with all three, 30/45/90-degree, lighting angle options specified in the International Organization for Standardization (ISO)

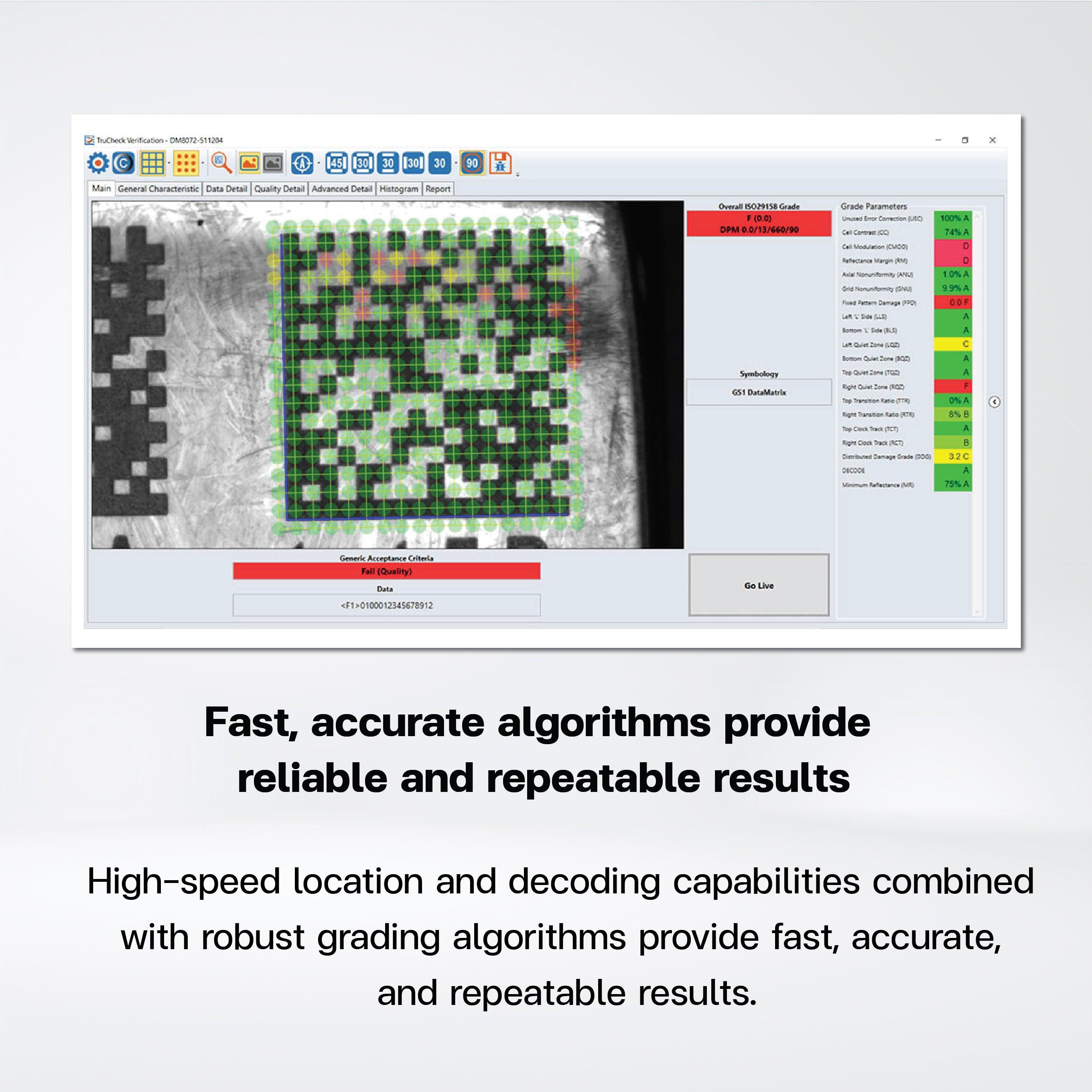

High-speed location and decoding capabilities combined with robust grading algorithms provide fast, accurate, and repeatable results.

Easy-to-maneuver compact design and rugged housing for greater mobility

The DataMan 8072 verifier is the only verifier on the market with an IP65 rating and rugged housing to withstand even the harshest factory floor environments.
